STANDARD LABORATORY USE STERILIZER WITHOUT DRYER, Yamato SN210, 20L 200-240V 6.5~7.5A 50/60Hz

$5,500.00

+ Free Shipping

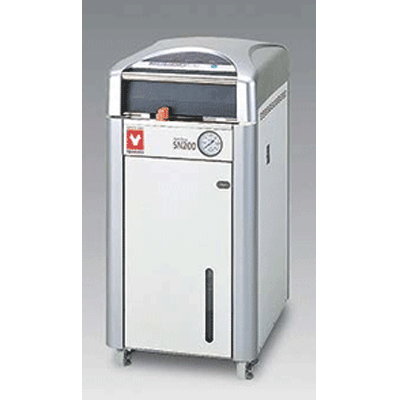

Yamato SN210, Standard Sterilizer without Dryer

The Yamato SN210 is a high-performance, easy-to-operate, and ergonomically designed sterilizer featuring easy top loading and handling of samples. Maximum sterilizing temperature goes up to 135 degrees Celsius for protein modification. Custom programs can be saved for repeated use.

Operation and functions:

  • Maximum sterilizing temperature goes up to 135oC suitable for protein modification
  • By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
  • Custom programs can be saved for repeated use
  • Standard equipped with a timer start and preheating features for efficient use of time and cooling fan to shorten cool down time
  • Mobile on wheels

Safety Features

  • Lid interlock mechanism
  • Drain bottle unset alarm
  • Memory malfunction
  • Automatic shutdown when it malfunctions
  • Self-diagnostic functions
  • System: Automatic high-pressure steam sterilization
  • Operating temperature range: 45~135o C
  • Max. working pressure: 0.255MPa
  • Ambient temperature: 5~35o C
  • Lid: Manual upward opening with an interlock for safety
  • Heater: 100V, 600W x 2 units
  • Exhaust valve: One exhaust valve and one slow-release valve
  • Connection ports for optional accessories: Total 3 ports. Female thread for sample temp. Sensor (1/4″), Female thread for chamber temp. sensor (1/4″ ), Female thread pressure sensor (branching from the solenoid valve tubing)
  • Cooling fan: Axial fan motor
  • Temp. controller: PID control by microprocessor
  • Temp display/setting: Digital display / digital setting by ?/? keys
  • Timer / Timer resolution: 0 or 1 min to 99 hrs 59 min. / 1 min
  • Operation mode: Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer programmed course
  • Other functions: Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting
  • Safety Device: Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa)
  • External dimensions: 15.7×20.9×33.4 in. (400 x 530 x 848 mm)
  • Internal dimensions of chamber: 14.6×18.5 in. (I.D. 370 x D470 mm)
  • Weight: 143 lbs. (~65kg)
  • Internal capacity: 5.3 gals. (20L)
  • Power source 50/60Hz: AC200~240V(15~12.5A) with plug
